IBM model F keyboard XT (IBM 5155 portable)

SKU: 5155_keyboard Category:

Description



part# (from IBM 5155 portable personal computer)
serial# (none)
date approximately February 1984 (29 years old)
IBM logo silver logo with black text (IBM portable personal computer)

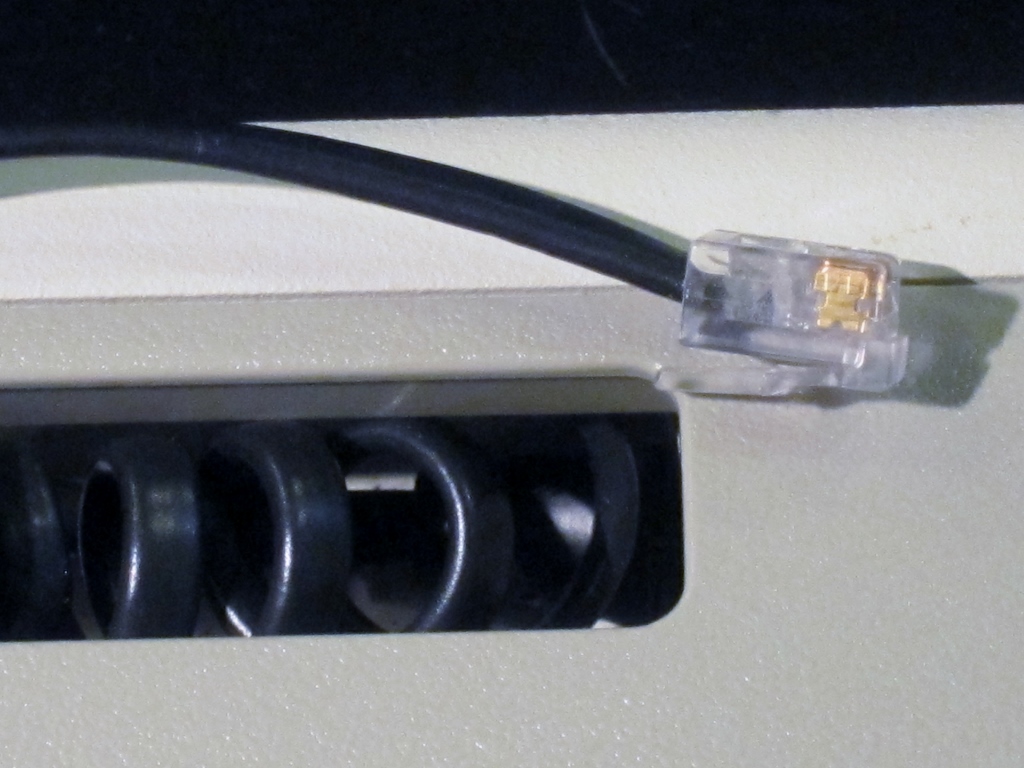

cable attached, black coiled cable, 5-pin RJ-11 type telephone connector
Similar to the heavy-duty keyboard for the IBM 5150 (2.69kg), this is the “lighter” keyboard for the IBM 5155 portable (2.49kg) ::sarcasm::  Total weight of the IBM 5155 computer + keyboard was 13.6 kg or 30 pounds
Excerpt from the original IBM announcement “The IBM Portable Personal Computer 5155 Model 68 consists of a lightweight case with a carrying handle containing a built-in. 9-inch, amber composite display, one 5 1/4-inch double sided diskette drive (with space for an optional second drive), and two IBM Personal Computer attachment options (diskette adapter and colour/graphics adapter).The unit also has a new, lightweight keyboard and a universal power supply.”
condition Item is confirmed to be working when using a RJ-11 type to 5-pin DIN custom cable, 5-pin DIN to ps/2 min-DIN adapter, and XT to USB converter.  These adapters and converters are not included in the sale of the keyboard.  We highly recommend the commerically available XT to USB converter made by our friends at Hagstrom Electronics and available for purchase directly on their website.
comments Very nice example of IBM industrial design from 1980’s.  As shown by IBM forward thinking of IBM mechanical servicability and interchangable parts, the physical keys on this 1984 keyboard are removable and are the same exact shape and profile as those used on the original IBM XT, the original IBM AT, and throughout the duration of model M keyboards that were produced for the IBM ps/2 series of computers from 1985 – 1999.  The lettering is very clear and embedded into the plastic.  Unlike other vintage computers (such as Apple), IBM knew their chemical engineering and chose plastics that were not subject to yellowing or browning over time due to UV/oxidation effects.

(IBM 5155 can be used on a modern PC computer, but requires use of some additional adapters and converters — NOT included in sale, illustrated here only for reference)
